Geberit Mepla Stay in shape with more flexibility
The flexible all-rounder
Geberit Mepla can be processed quickly and is inherently stable, flexible, and resistant to pressure and corrosion. It is suitable for all water qualities – a water analysis is not required. Geberit Mepla can easily be combined with Geberit Mapress or Geberit PushFit.
Geberit Mepla applications
- Potable water
- Heating
- Industry
Many good reasons for Geberit Mepla
Assortment
Dimensions
Fittings
System pipes

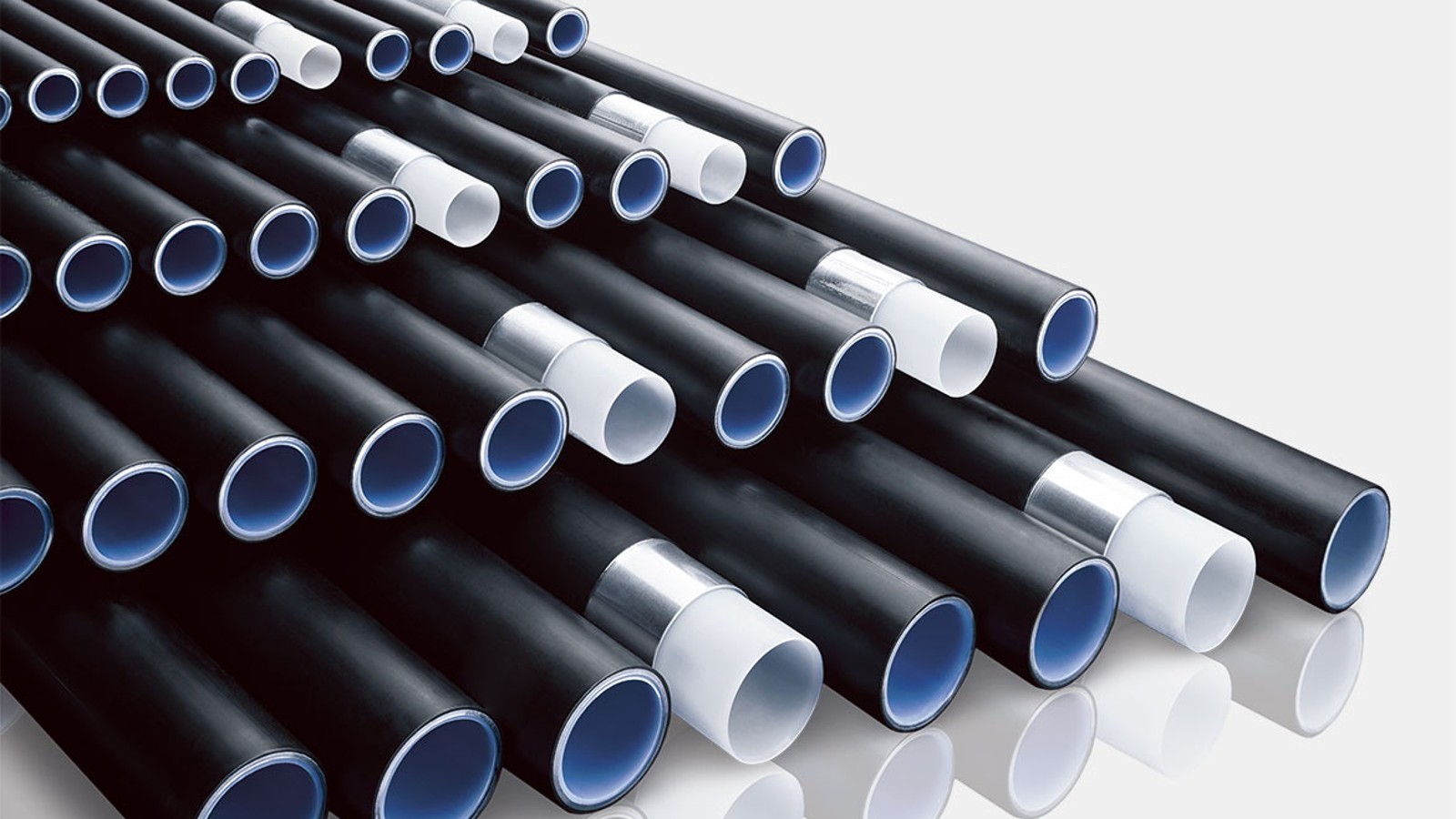

Dimensions
| Nominal width (DN) | Dimension d x s (mm) |
|---|---|
| 12 | 16 x 2.25 |
| 15 | 20 x 2.5 |
| 20 | 26 x 3.0 |
| 25 | 32 x 3.0 |
| 32 | 40 x 3.5 |
| 40 | 50 x 4.5 |
| 50 | 63 x 4.5 |
| 65 | 75 x 4.7 |
Fittings

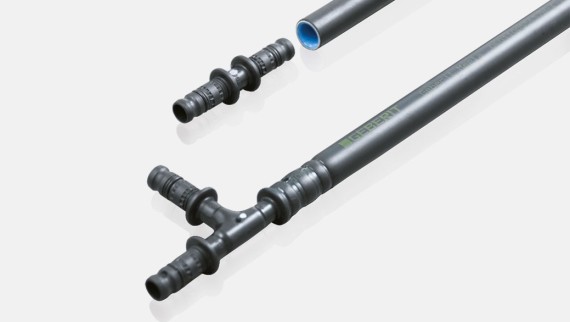

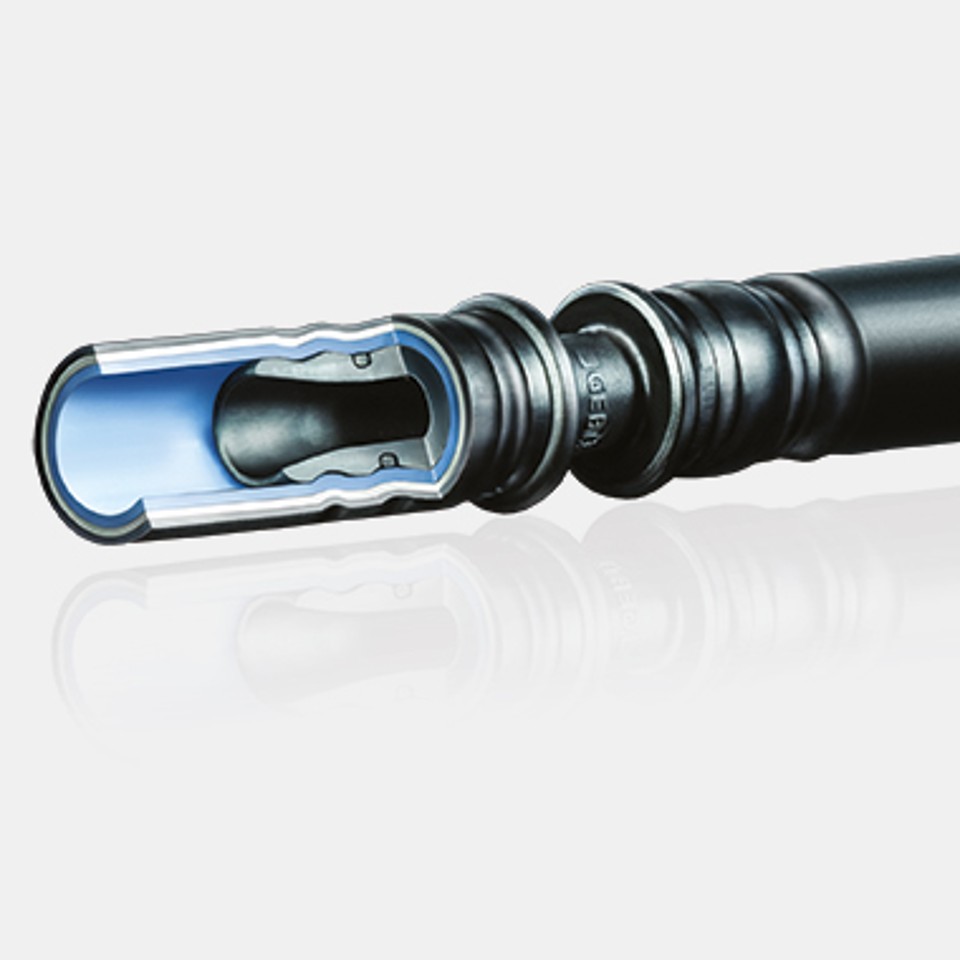

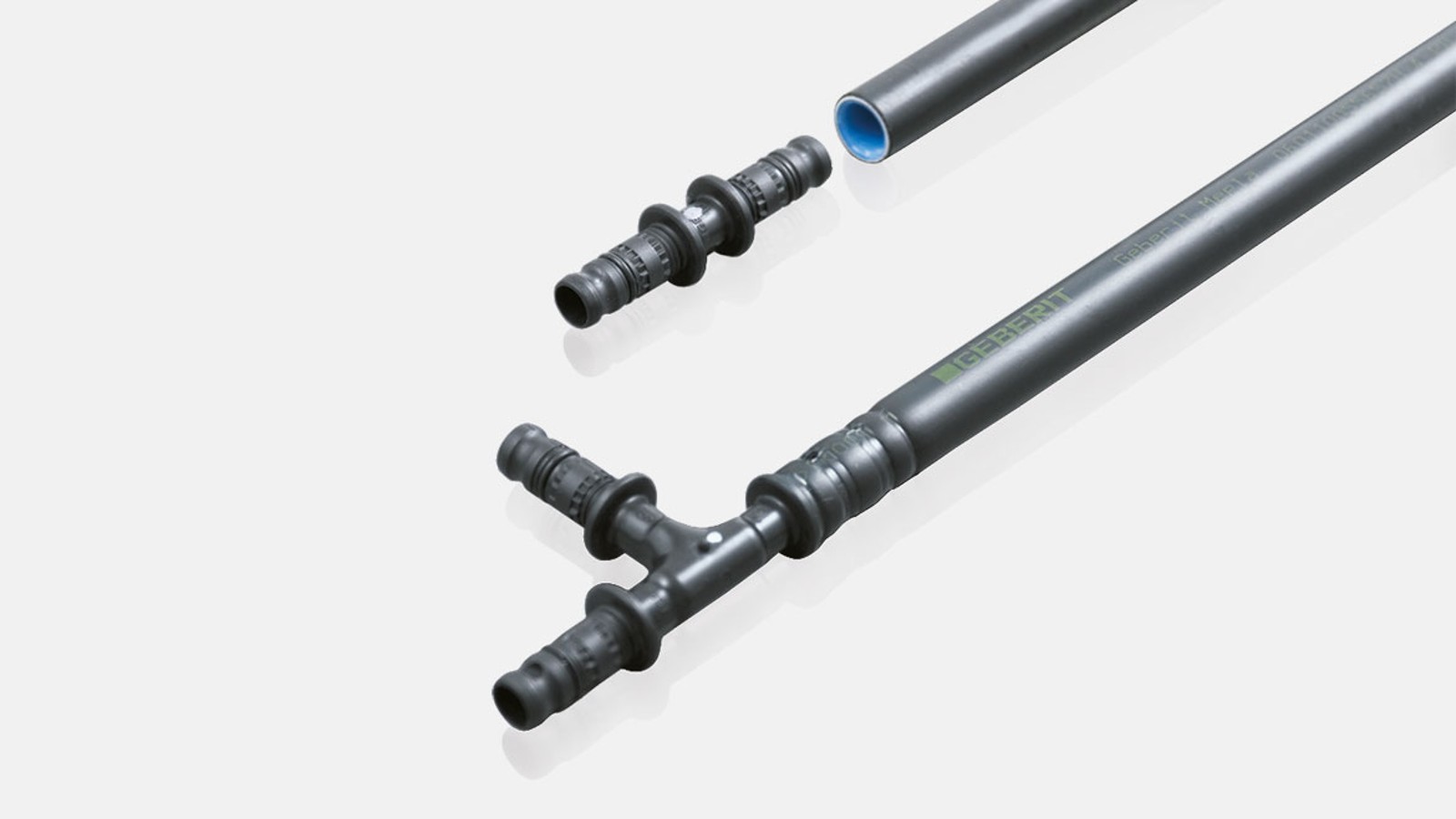

Geberit Mepla fittings
- Visible pipe insertion depth
- Precise pressing operation thanks to tool positioning aid
- Unpressed connections can be quickly identified during a leak test
- Wide assortment of fittings made of PVDF, gunmetal and brass

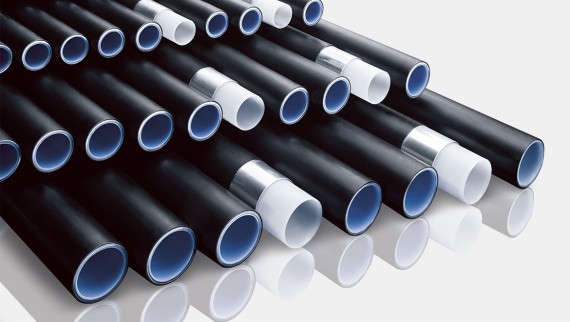

System pipes
Three-layer ML pipe
- Outer plastic layer: second-generation PE-RT for protection against corrosion and mechanical damage
- Central aluminium layer: makes the multilayer pipe stable, bendable and forms a barrier against diffusion
- Inside layer: corrosion-resistant and food-safe second-generation PE-RT
