Fluid installation Geberit FlowFit
No more effort
Geberit FlowFit is the innovative supply system that facilitates the ideal installation process. Thanks to their input and suggestions, plumbers played a decisive role in the development phase, during which Geberit was able to reduce everything that makes work on the building site difficult and cumbersome. Effortless, intuitive and flowing processes during installation – just the way it should be.
Product characteristics
Work Flow
Convenient installation
Water Flow
Flow-optimised hydraulics
Data Flow
Intelligent planning
Material Flow
Sustainability concept
No more compromises – many good reasons to choose Geberit FlowFit
Peace of mind for sanitary engineers
No more unnecessary pressure losses in a system comparison
The flow-optimised design of FlowFit results in minimal pressure losses. This means that the water flows through the piping system and to the point of use with lower pressure loss. Piping systems can be planned and installed with much smaller diameters. An additional advantage: This results in shorter draw-off times, reduced water volume and less stagnation in the pipe.

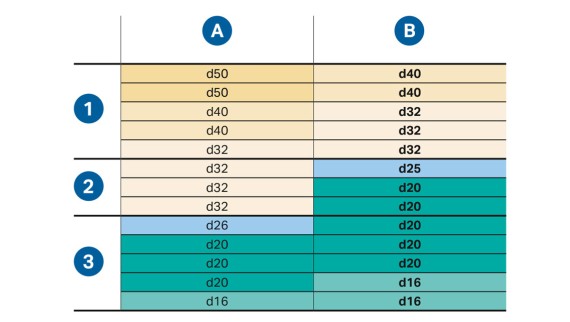

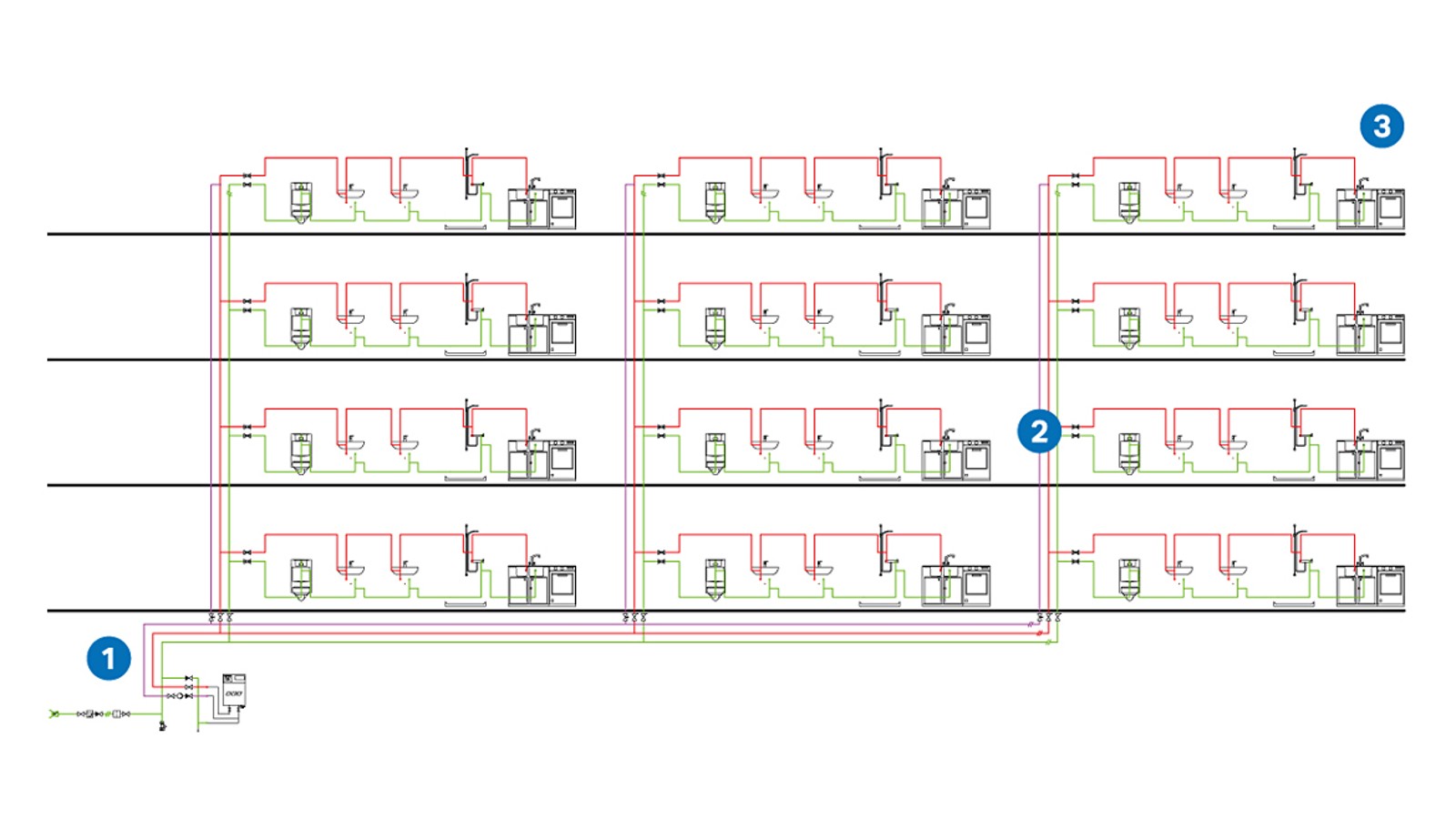

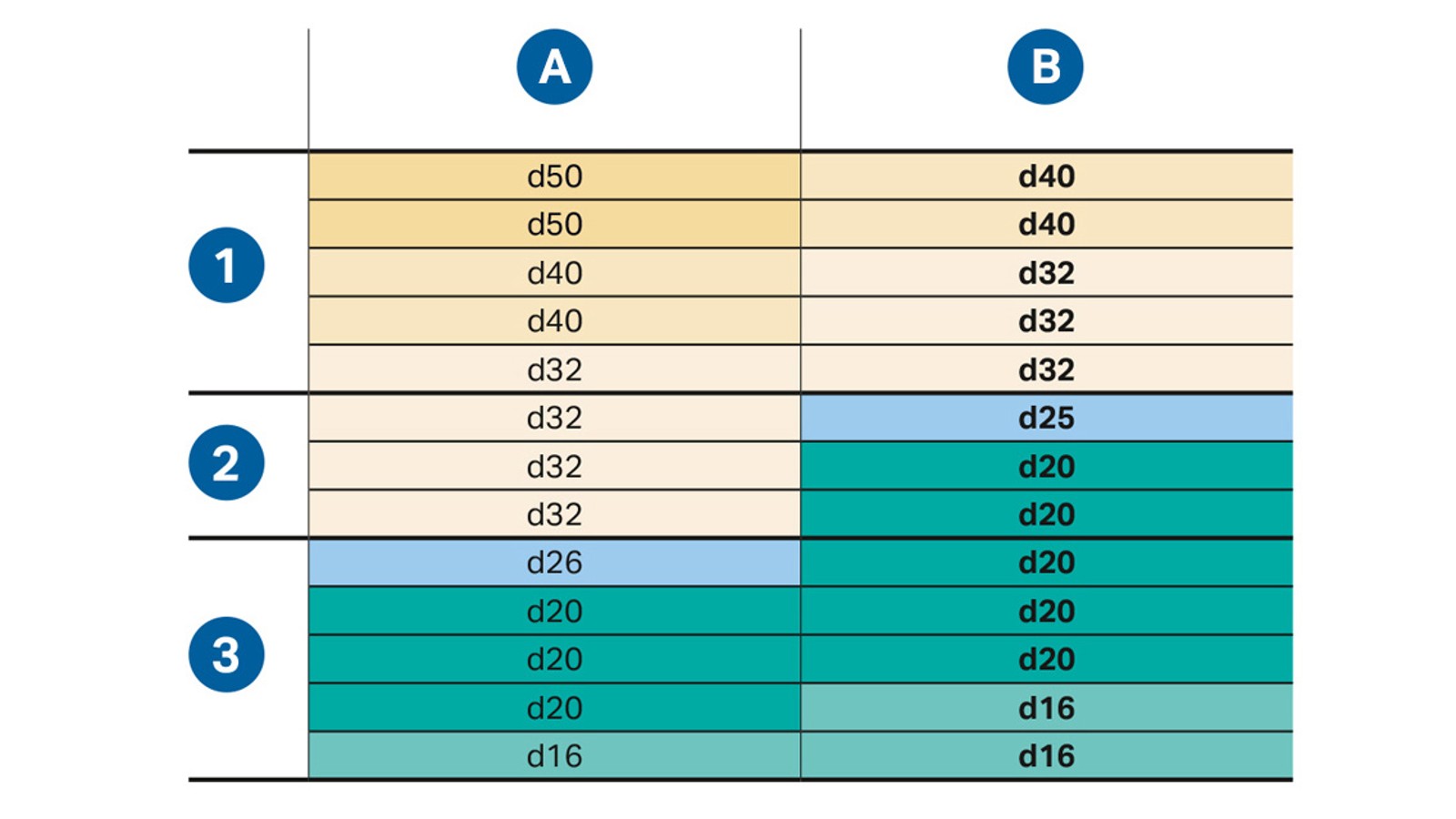

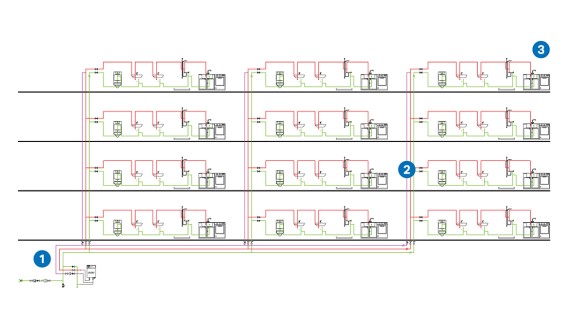

Calculation of the diameters in the example house with 1 bar minimum flow pressure at the last point of use.
1: Service connection / Basement distribution
2: Riser pipe
3: Floor
A: Multilayer composite system without pressure loss optimisation
B: Geberit FlowFit
No more obstacles in planning
Get where you need to go in just a few clicks with data you can rely on when planning Geberit FlowFit: up-to-date, market-specific and informative solutions are available, particularly for sanitary engineers who use BIM. The plug-in for Autodesk® Revit® provides users with direct access to the current BIM content for Geberit systems.
Additional information and Geberit BIM Catalogue plug-in available to download.
No more worries – good solutions for a sustainable supply system
No more disposal hassle
Protective caps protect pipes and fittings against the ingress of dirt on the building site and during transport. The pressing indicators guide the tool and clearly identify unpressed connections. Once the pipelines have been installed, these plastic parts have served their purpose and you can return them to a waste management enterprise free of charge via DHL.

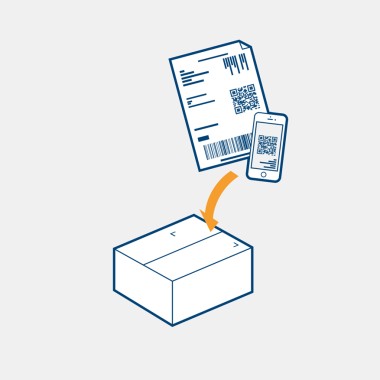

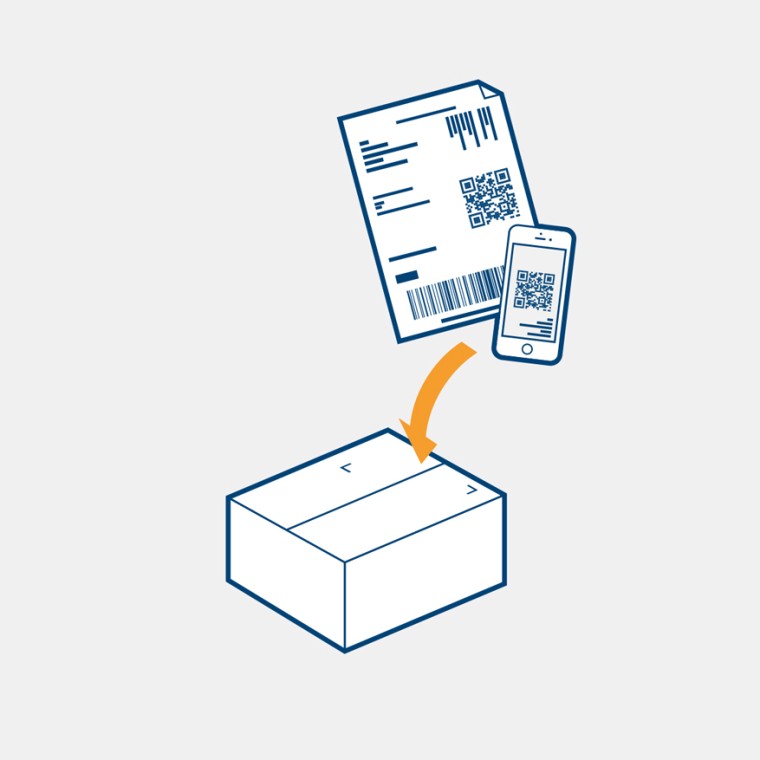

Returning protective caps and pressing indicators
No more gaps – comprehensive assortment
Dimensions
| Nominal width DN | Dimension d x s (mm) |
|---|---|
| 12 | 16 x 2.0 |
| 15 | 20 x 2.0 |
| 20 | 25 x 2.5 |
| 25 | 32 x 2.8 |
| 32 | 40 x 3.0 |
| 40 | 50 x 3.8 |
| 50 | 63 x 4.0 |
| 65 | 75 x 4.6 |

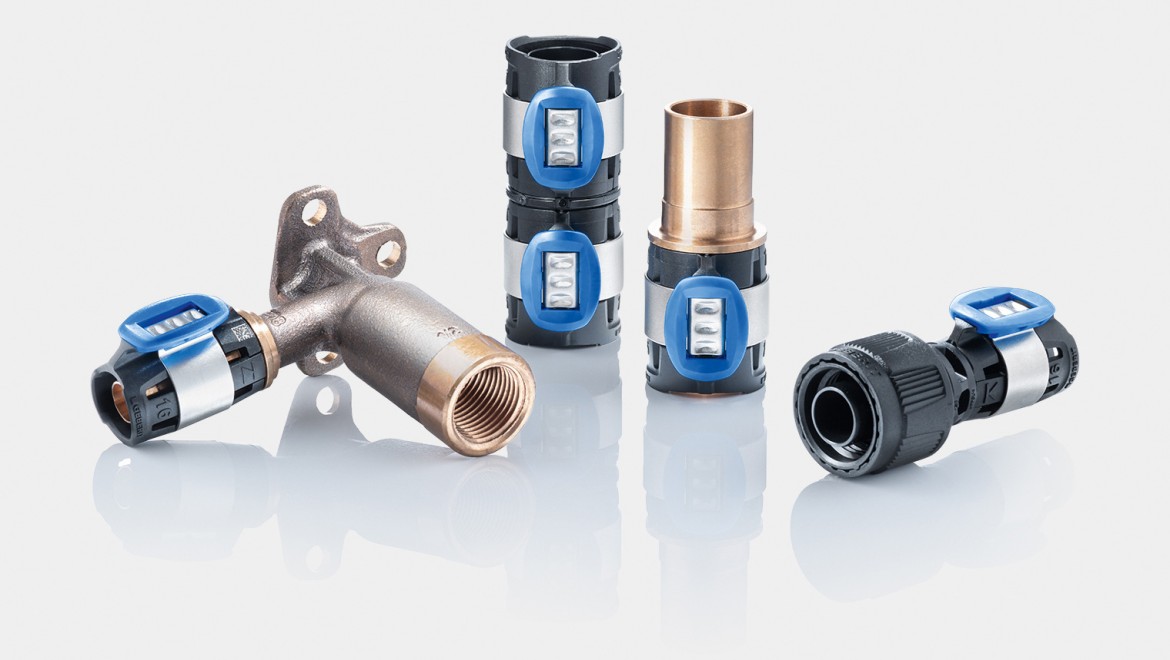

Fittings
Fittings
Comprehensive assortment

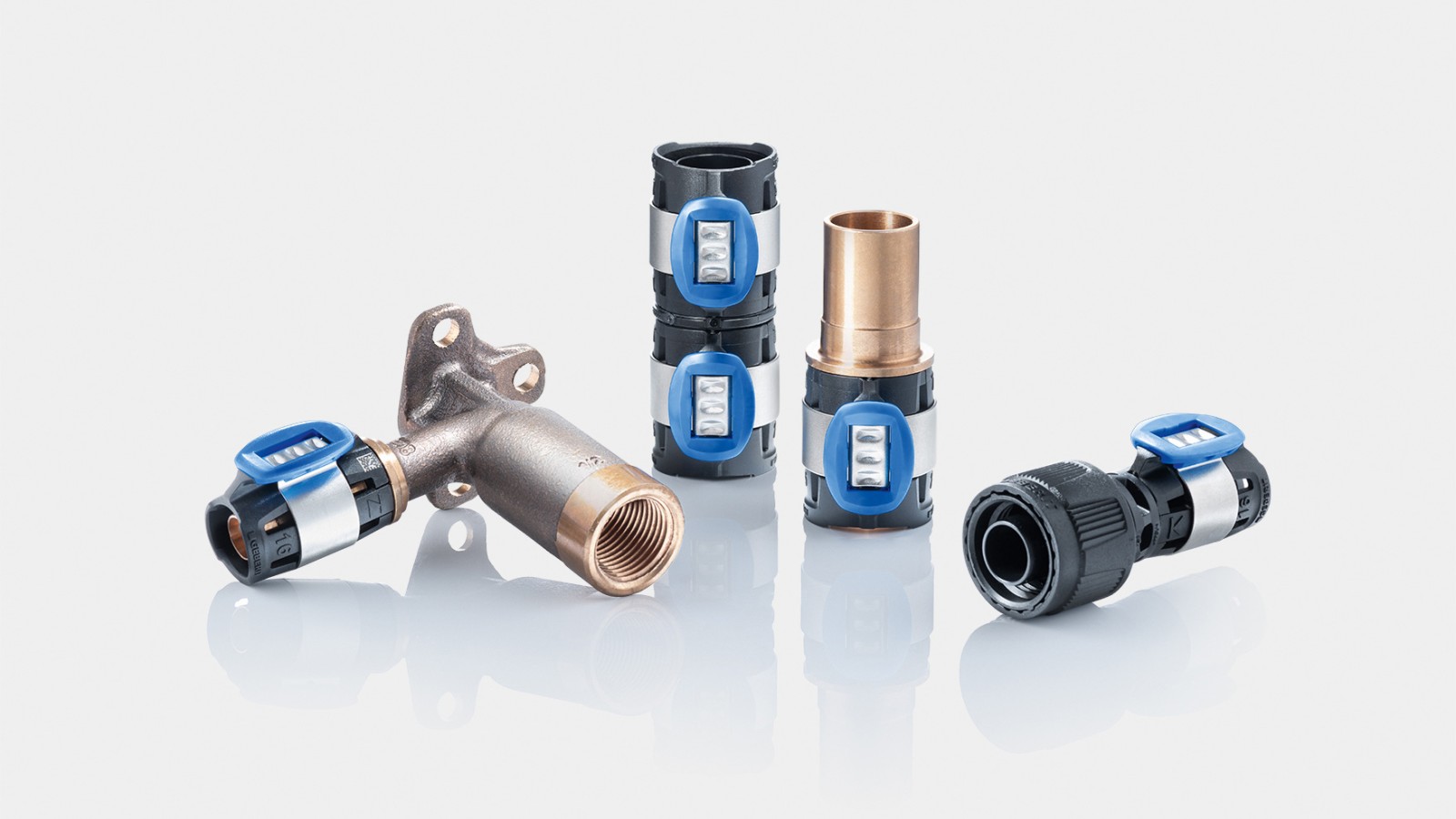

Geberit FlowFit offers a comprehensive assortment of fittings made of PPSU, lead-free gunmetal and lead-free silicon bronze. The assortment includes both standard and special fittings.
Excellent connections

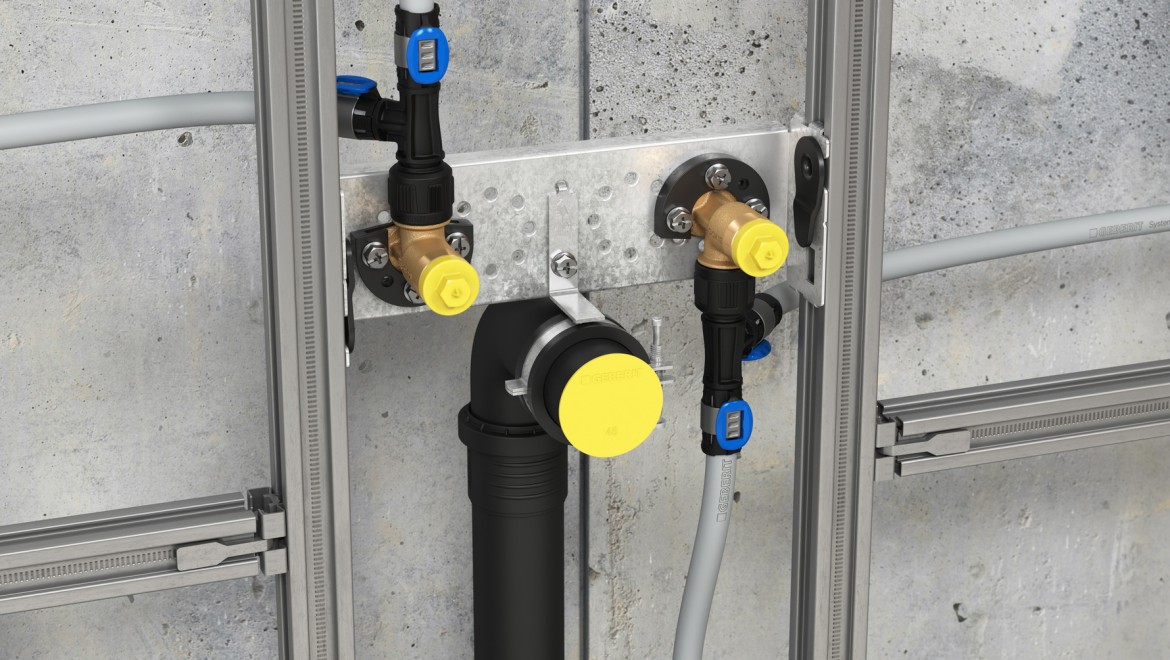

Geberit FlowFit can be connected tool-free to any Geberit taps and fittings with the MasterFix adapter. The connection can be removed again even after a long period of operation.
Straightforward combinations

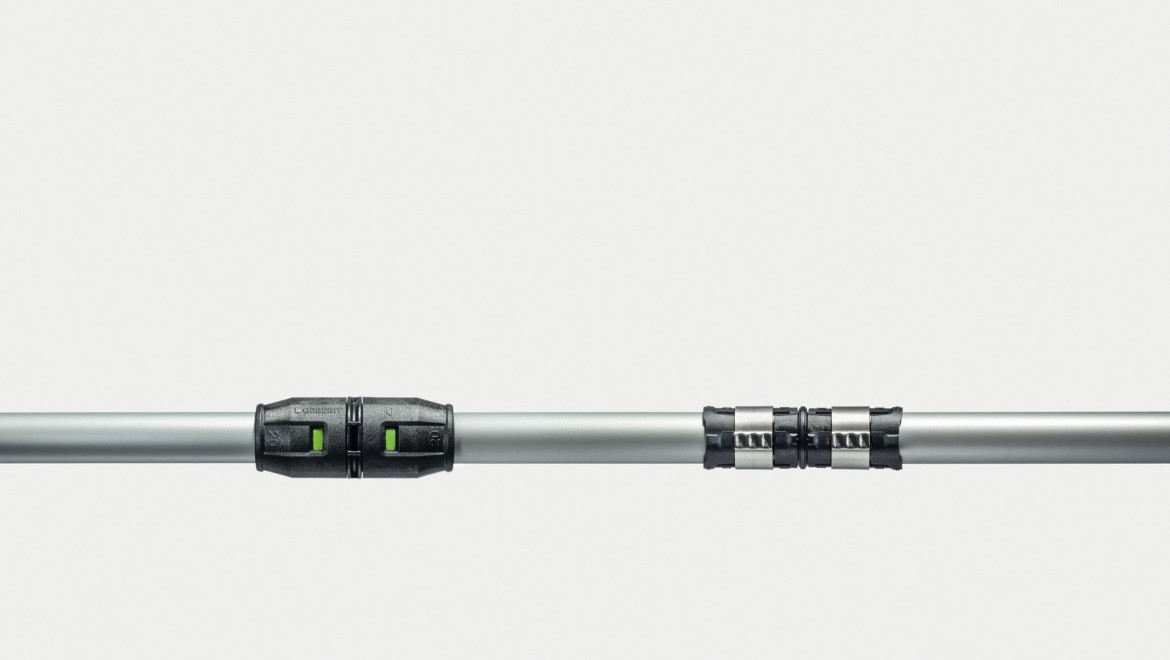

Geberit FlowFit system pipes can also be used as push-fit connections with Geberit PushFit fittings. System adapters are available for connection to other Geberit supply systems.
System pipes

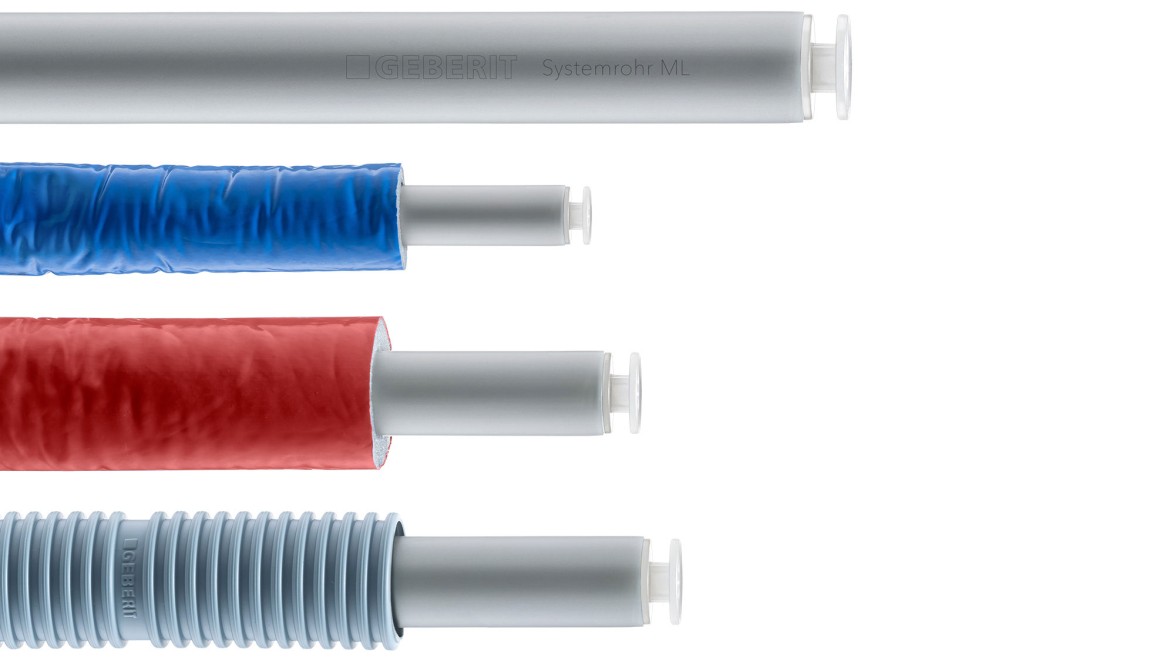

Geberit system pipe ML
- Multilayer system pipe for all applications
- Lightweight and inherently stable
- Available as a rough pipe for dimensions d16 to d75
- With protective shell or with insulation made of polyethylene foam for dimensions d16 and d20
- Various insulation thicknesses are available with durable foil coating in red and blue
- Protection plugs on the pipe ends prevent the accumulation of dirt and particles
- Available in coils for dimensions d16 to d32

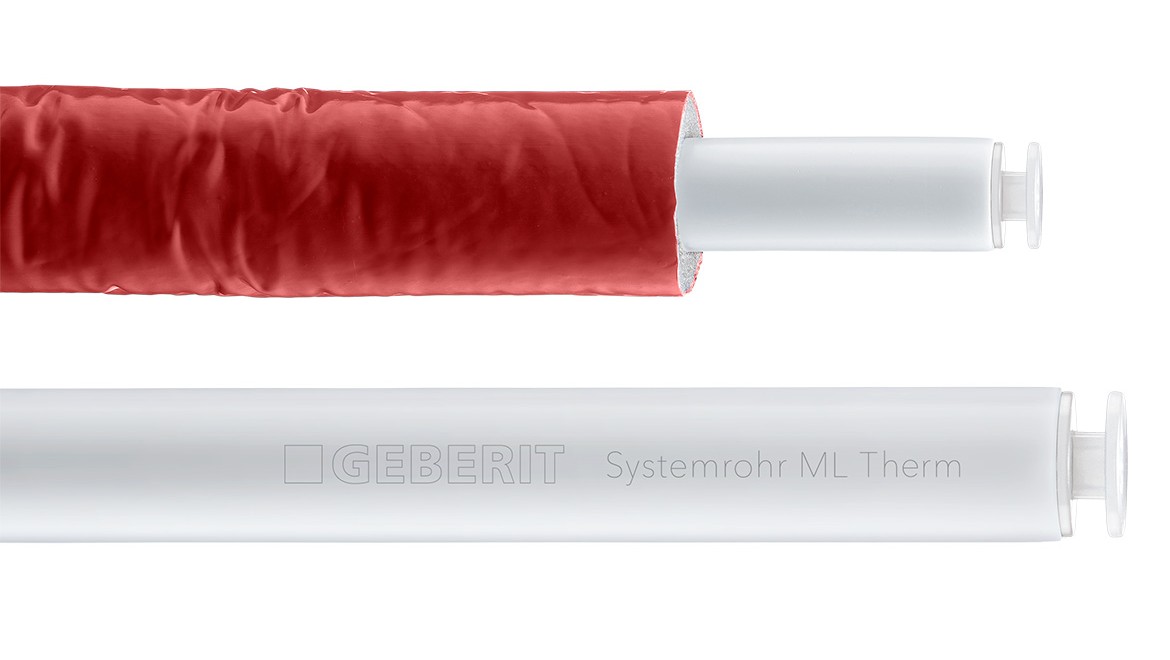

Geberit system pipe ML Therm
- For heating installations
- Available in coils for dimensions d16 to d25
- With insulation made of polyethylene foam for dimensions d16 and d35 with durable red foil coating
- Available in coils

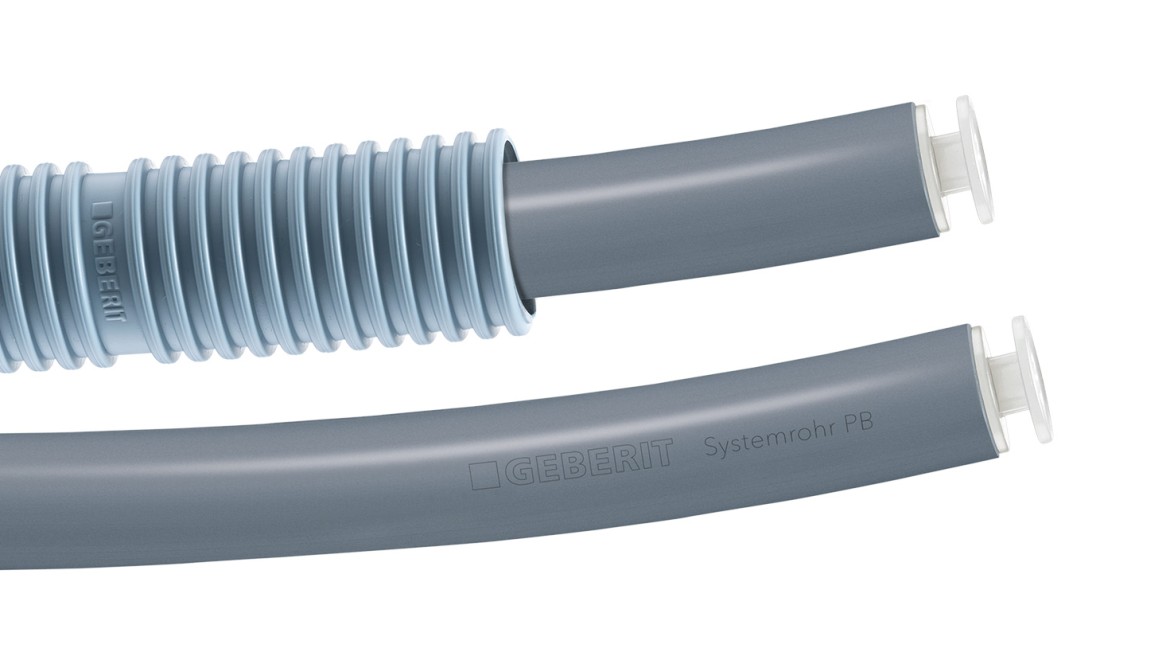

Geberit system pipe PB
- Flexible all-plastic pipe
- Available dimensions: 16, 20 and 25 mm
- Also available in the protective tube
- Available in coils
