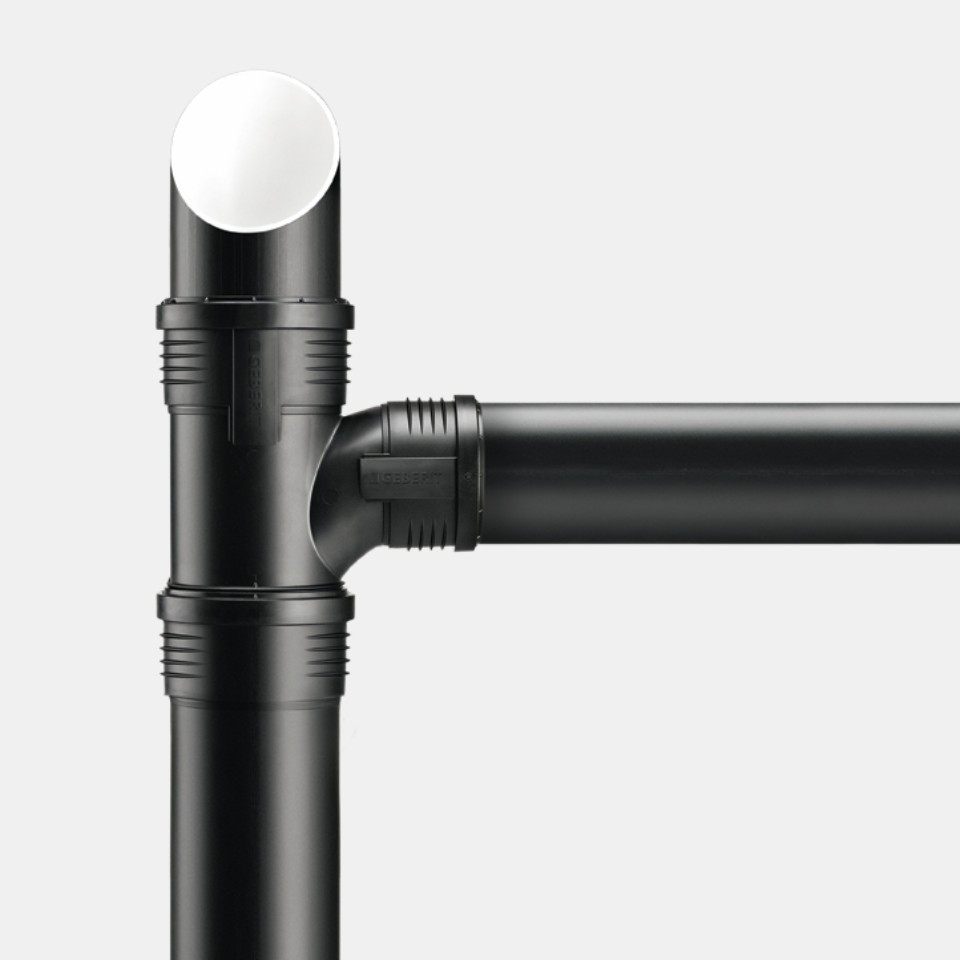

Geberit Silent-PP Quiet drainage easy plug-in
Sound-optimised waste water installation
The Geberit Silent-PP drainage plug-in system is ideal for the rapid, economical and sound-optimised installation of drainage systems.
Geberit Silent-PP applications
- Building drainage
- Conventional roof drainage system (with retaining claw)
- Central vacuum cleaner
Many good reasons for Geberit Silent-PP

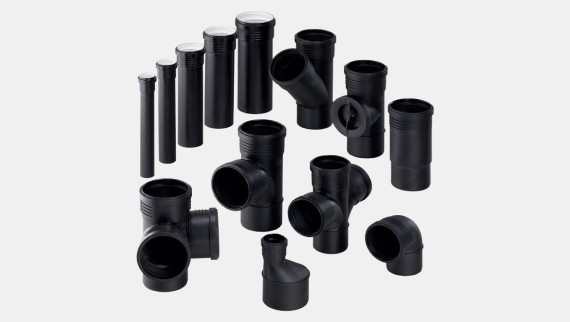

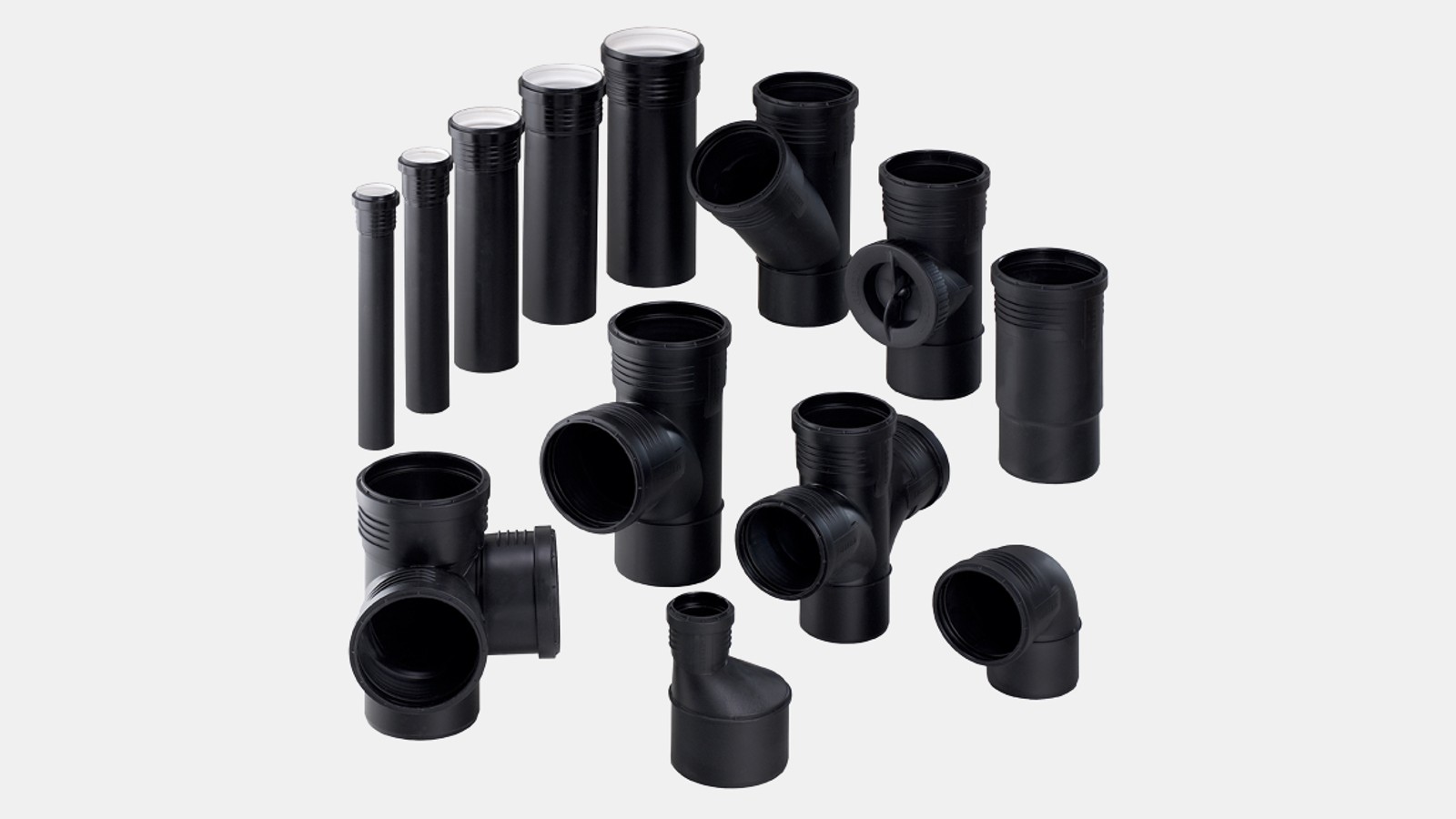

Geberit Silent-PP assortment
Dimensions
Accessories
Technical data
Dimensions
Versatile drainage system for economical installations
- Pipe dimensions from DN 32 to DN 160
- Wide assortment of Geberit fittings and special fittings
Accessories
Fire protection for Geberit Silent-PP
Fire tests were carried out in accordance with the standard EN 1366-3 for a large number of different installation situations. In combination with the Geberit fire protection sleeve RS90 Plus EN, the Geberit Silent-PP plug-in system is approved for a fire resistance of 90 minutes (ETA/ETB).

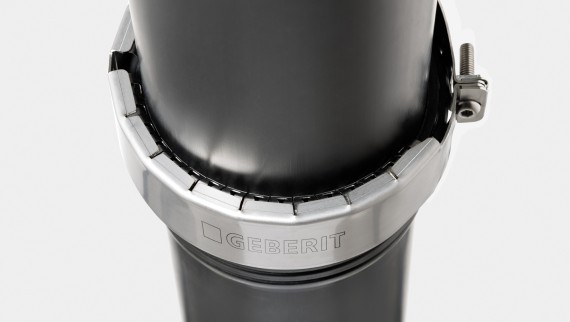

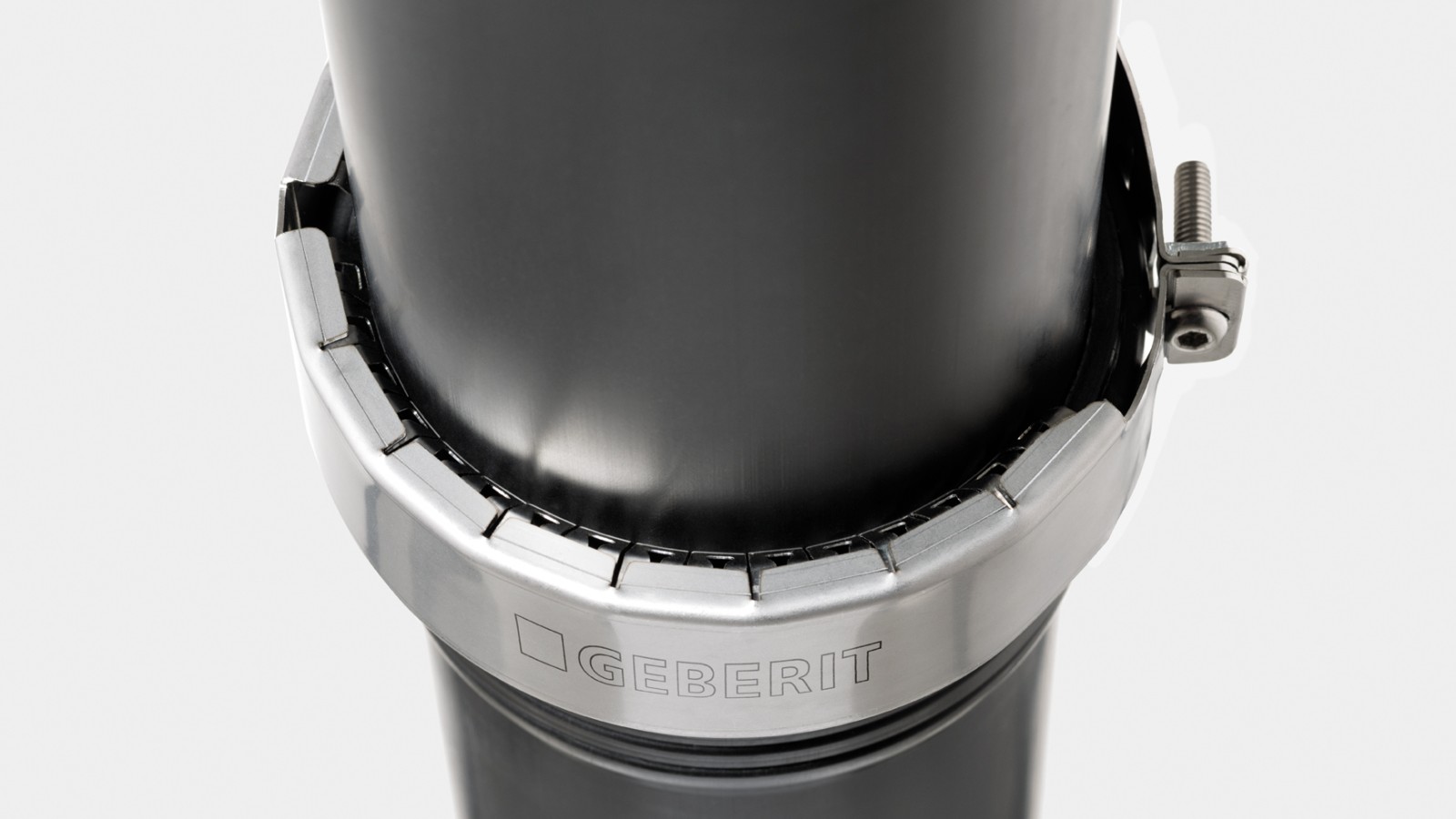

2-bar plug-in solution
A lengthways non-positive plug connection is established with the Geberit retaining claw. Geberit Silent-PP can therefore withstand a maximum internal pressure of up to 2 bar for rainwater pipes.
Technical data
| Geberit Silent-PP | |
|---|---|
| Available dimensions | d32; d40; d50; d75; d90; d110; d125; d160 |
| Building drainage | Yes |
| Conventional inner roof drainage system | With Geberit retaining claw for heights up to 20 m |
| Material | PP-MD |
| Coefficient of linear expansion | 0.08 mm/(m K) |
| Absorption of linear expansion | Takes place inside the ring seal socket and does not require any additional measures |
| Installation temperature | -10 °C to 40 °C |
| Permanent load application temperature | -10 °C to 90 °C |
| Chemical resistance | Standard household chemicals |
