Geberit PE Robust resistance no matter what
The professionals for the dirty work
Geberit PE discharge pipes are suitable for a multitude of application ranges in building drainage, roof drainage, in industry, in commercial or laboratory facilities, for placement in the ground, in concrete or in bridge construction.
- Resistant to around 95% of all standard alkalis, acids and chemicals.
- The pipes and fittings withstand shocks, drops, impacts or short-term pressure without breakage or permanent deformation

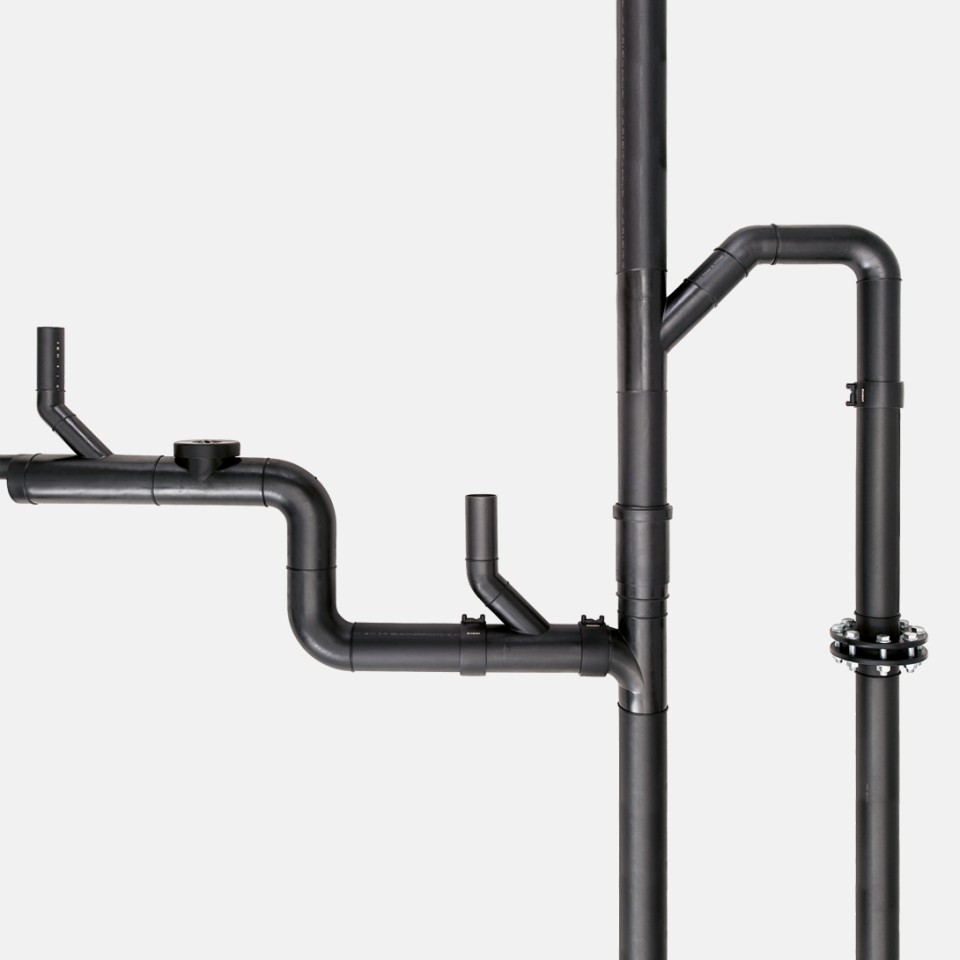

Geberit PE applications
- Building drainage
- Conventional roof drainage system
- Syphonic roof drainage system
- Land drainage system
- Industry
Geberit PE is suitable for embedding in concrete.
Many good reasons for Geberit PE
Geberit PE assortment
Dimensions
Fittings
Accessories
Technical data
Dimensions
| Nominal width (DN) | Dimension d x s (mm) |
|---|---|
| 30 | 32 x 3 |
| 40 | 40 x 3 |
| 50 | 50 x 3 |
| 56 | 56 x 3 |
| 60 | 63 x 3 |
| 70 | 75 x 3 |
| 90 | 90 x 3.5 |
| 100 | 110 x 4.3 |
| 125 | 125 x 4.9 |
| 150 | 160 x 6.2 |
| 200 | 200 x 6.2 |
| 200 | 200 x 7.7 |
| 250 | 250 x 7.8 |
| 250 | 250 x 9.7 |
| 300 | 315 x 9.8 |
| 300 | 315 x 12.2 |

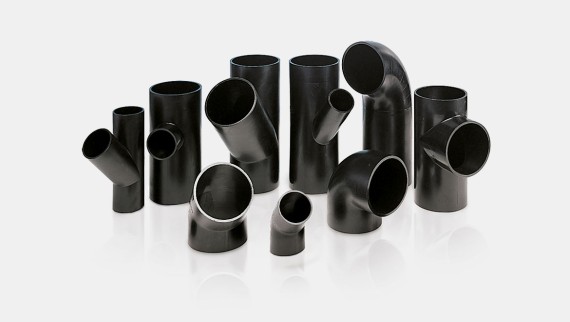

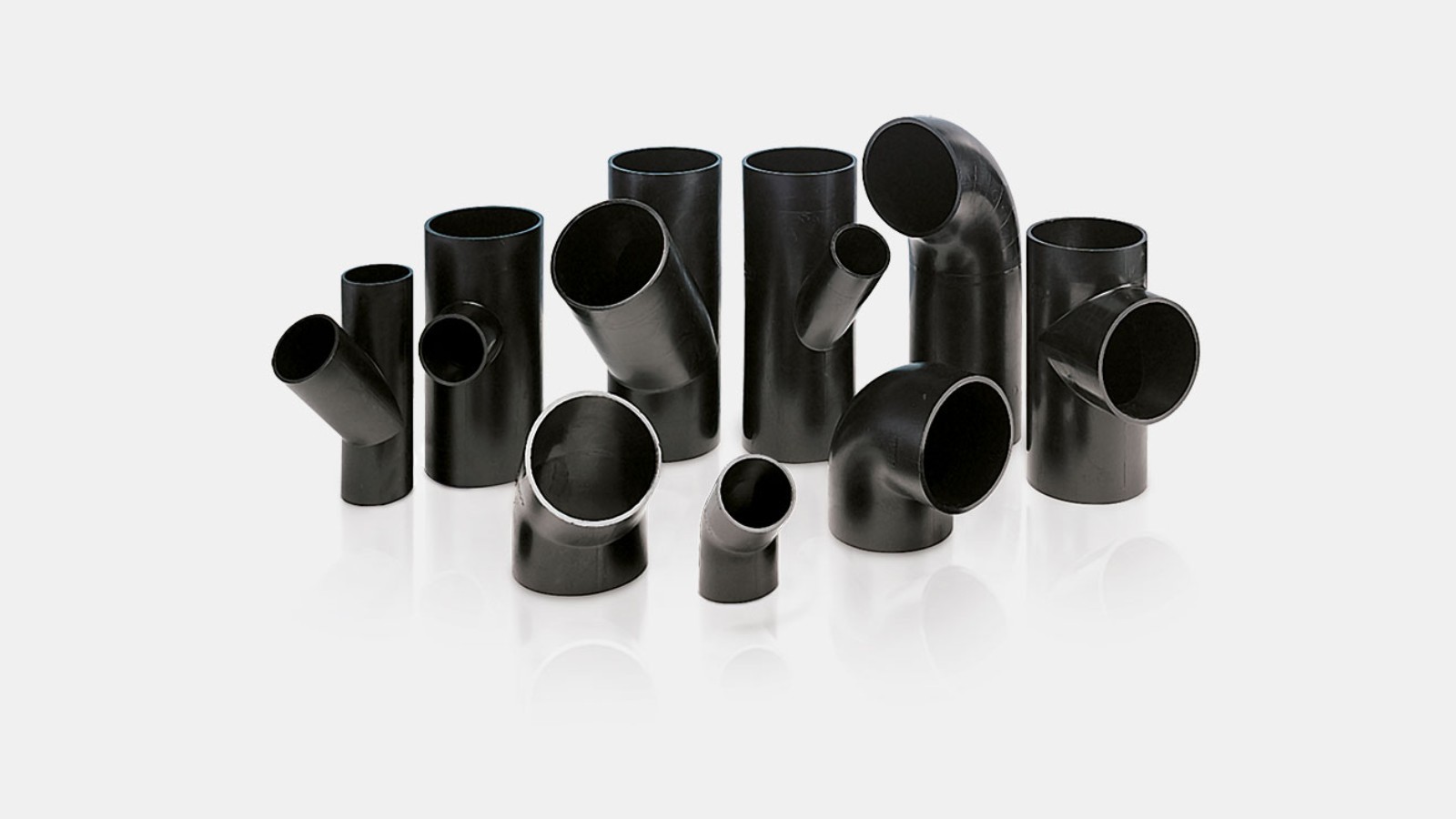

Fittings
- Large selection of fittings
- Diverse special fittings

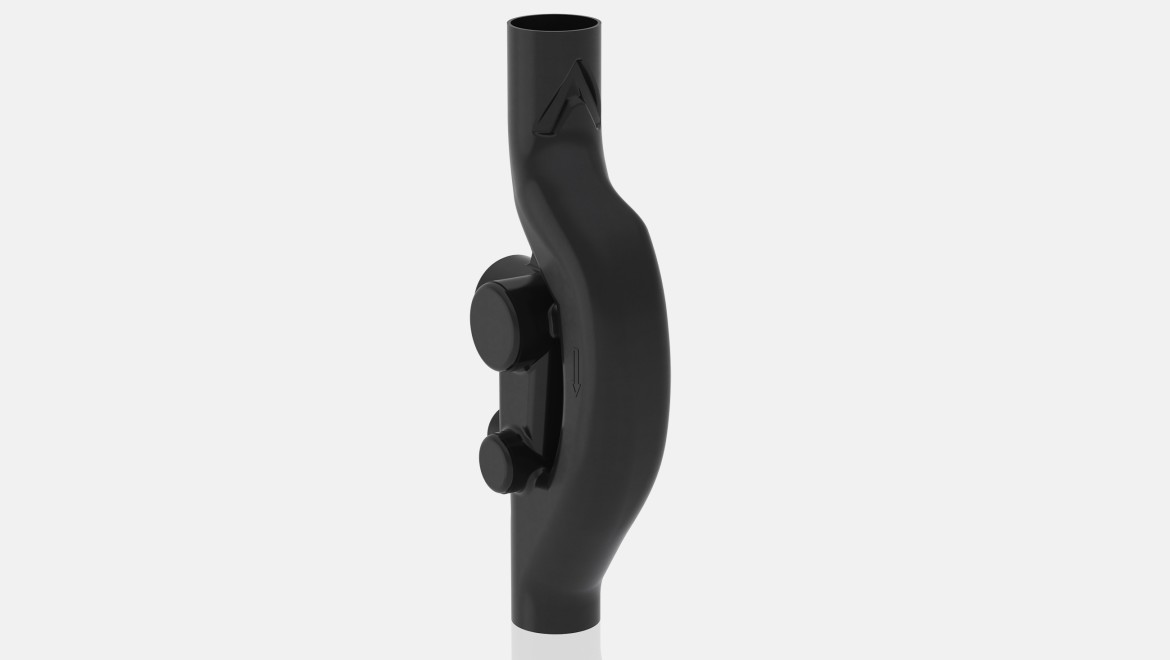

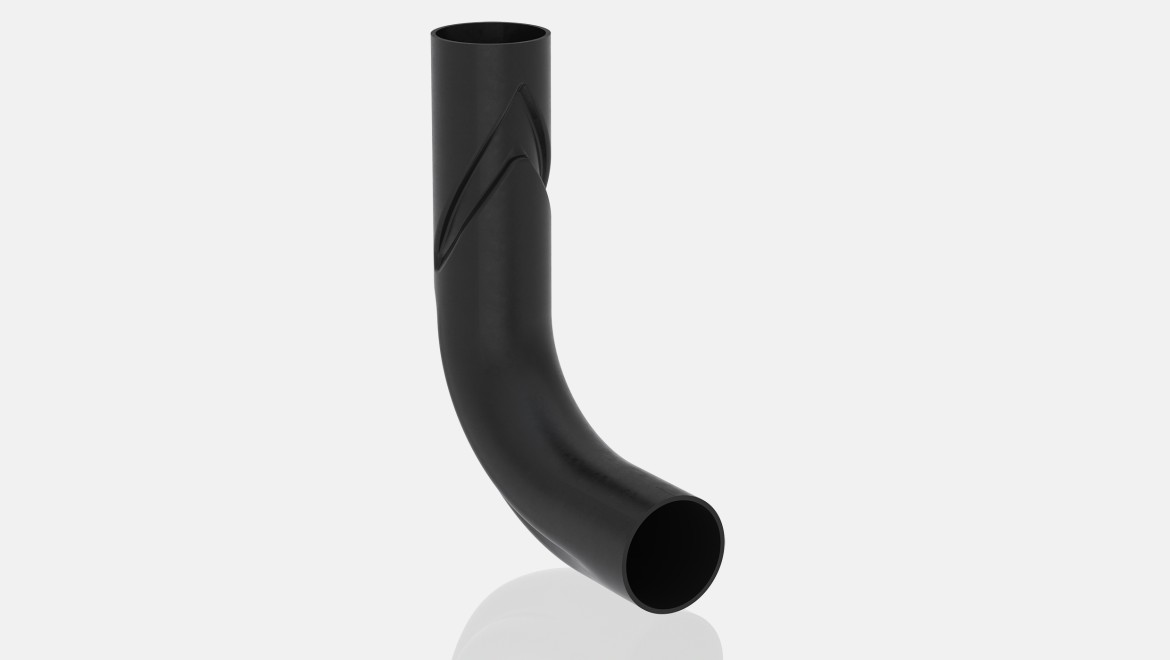

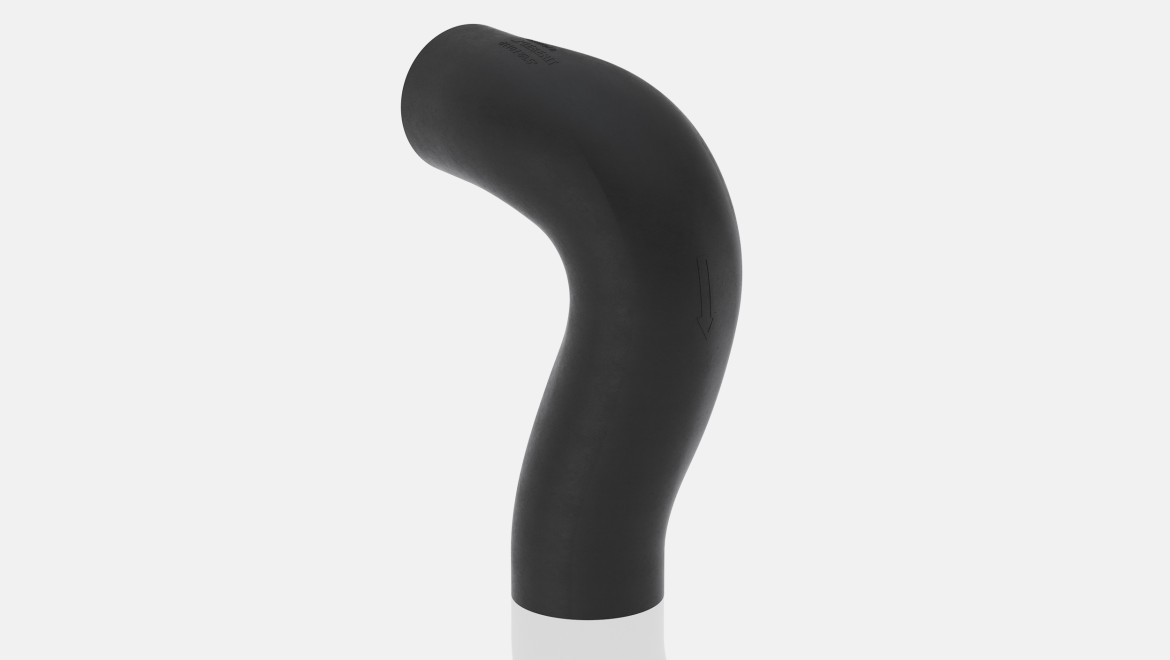

Geberit SuperTube
Space-saving drainage of high-rise buildings using fittings with SuperTube technology:
- more residential and floor space
- simple planning and installation
- smaller, consistent pipe diameters
- no additional ventilation pipes
- horizontal pipelines without slopes (up to six metres)
Accessories

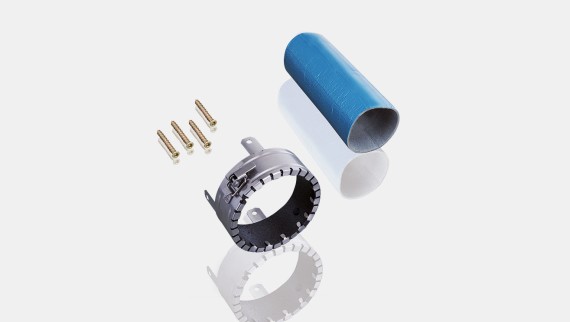

Fire protection for Geberit PE
- Geberit offers fire protection sleeves up to fire resistance class F 120
- Fire tests have been carried out in accordance with EN 1366-3
- Geberit fire protection sleeves RS90 Plus EN are approved for a fire resistance of 90 minutes (ETA/ETB).
Technical data
| Geberit PE | |
|---|---|
| Material | PE-HD |
| Coefficient of linear expansion | 0.17 mm/(m K) |
| Absorption of linear expansion | Requires expansion socket |
| Installation temperature | -20 to 40 °C |
| Permanent load application temperature | -20 to 80 °C |
| Chemical resistance | 95 % of all standard alkalis, acids and chemicals |
