Geberit actuator plates for WCs Choice is important

The Geberit odour extraction unit removes unpleasant odours directly from the WC ceramic appliance. It extracts the air through the flush pipe and flush valve, purifies it using a ceramic honeycomb filter and then returns it to the room. It also offers the following functions:

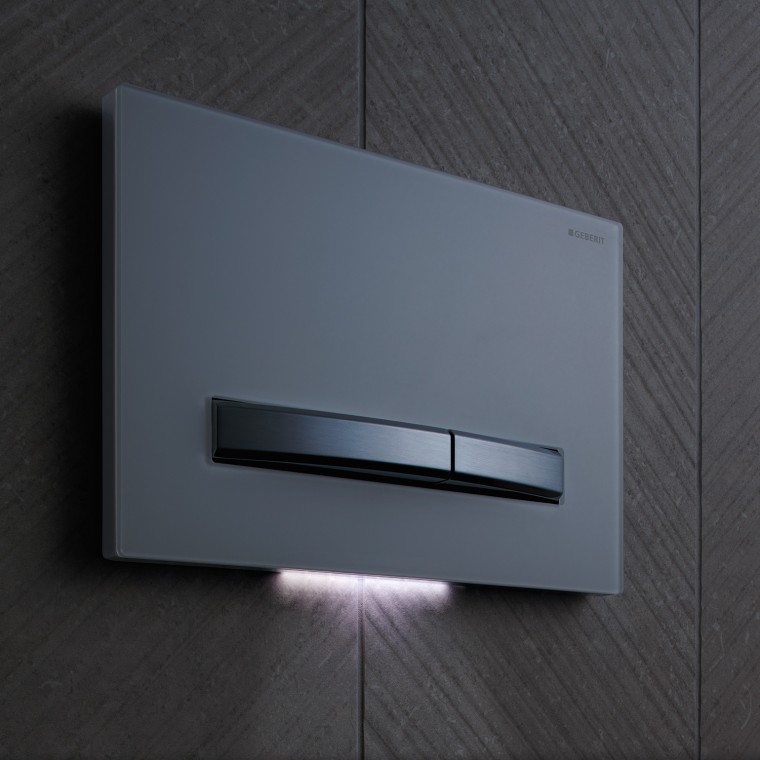

• An LED orientation light behind the actuator plate provides discreet lighting when going to the toilet at night. The light is controlled by a proximity sensor, which ensures that the air extraction and orientation light are automatically switched on and off. The settings of the proximity sensor can be personalised via app.
• Insert for in-cistern blocks. These blocks colour the flush water blue and produce a pleasantly fresh fragrance.

Installation is simple and well thought out. The only requirement is a connection to the 230 V power supply system.

• With the exception of the transformer, all components are installed through the cistern’s service opening. In line with regulations, the transformer is stored elsewhere – such as in a flush-mounting box with service opening.
• The transformer is sold under a separate article number.

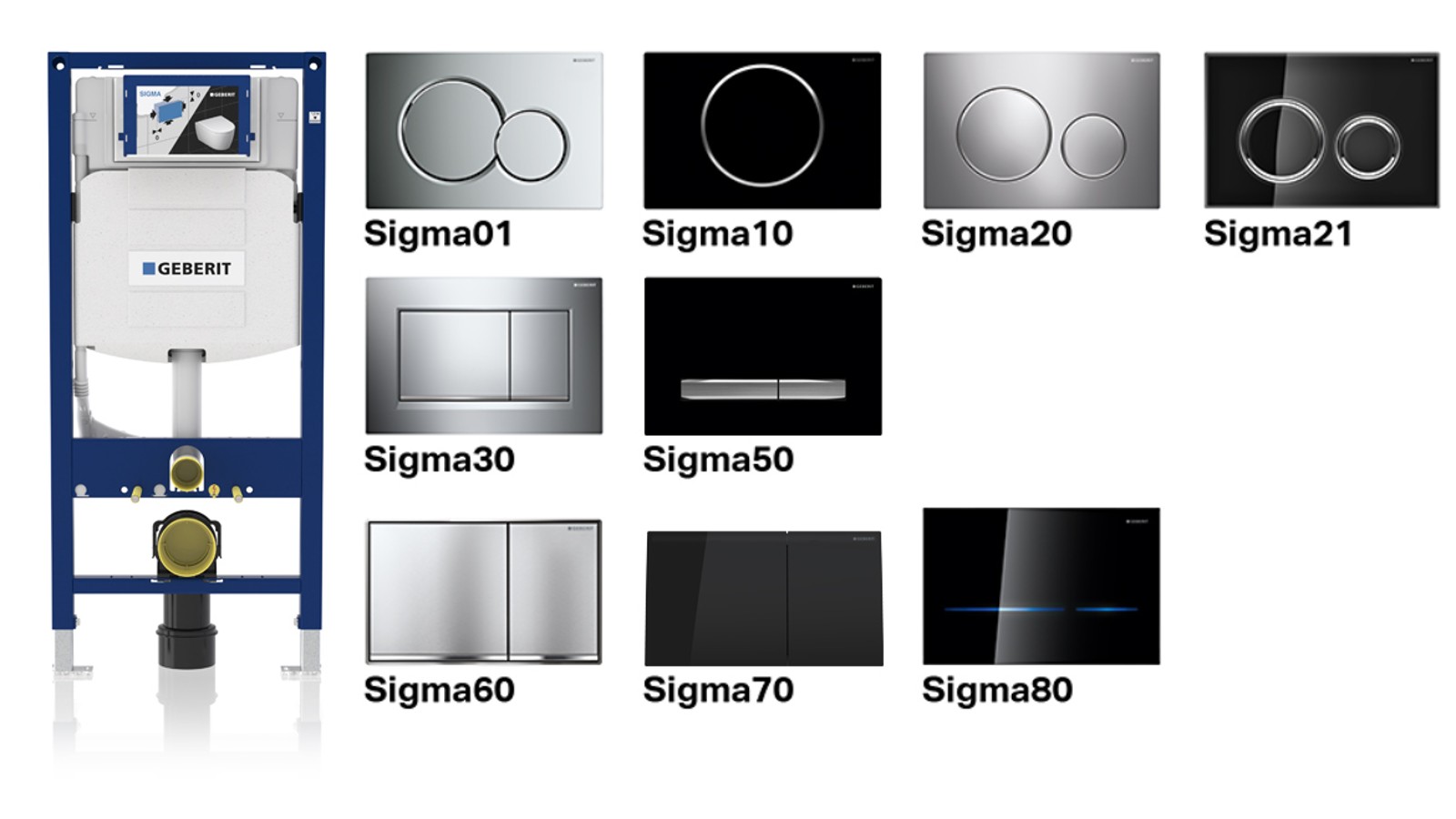

• Apart from a few exceptions, all actuator plates from the Sigma range can be combined with the odour extraction unit. Actuator plates from older series have to be replaced in the event of retrofitting.

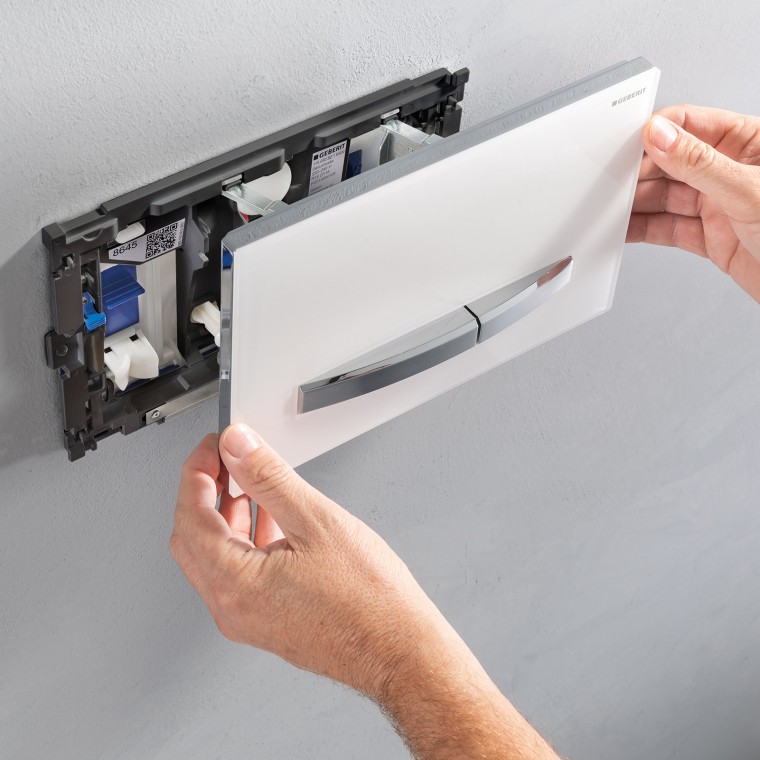

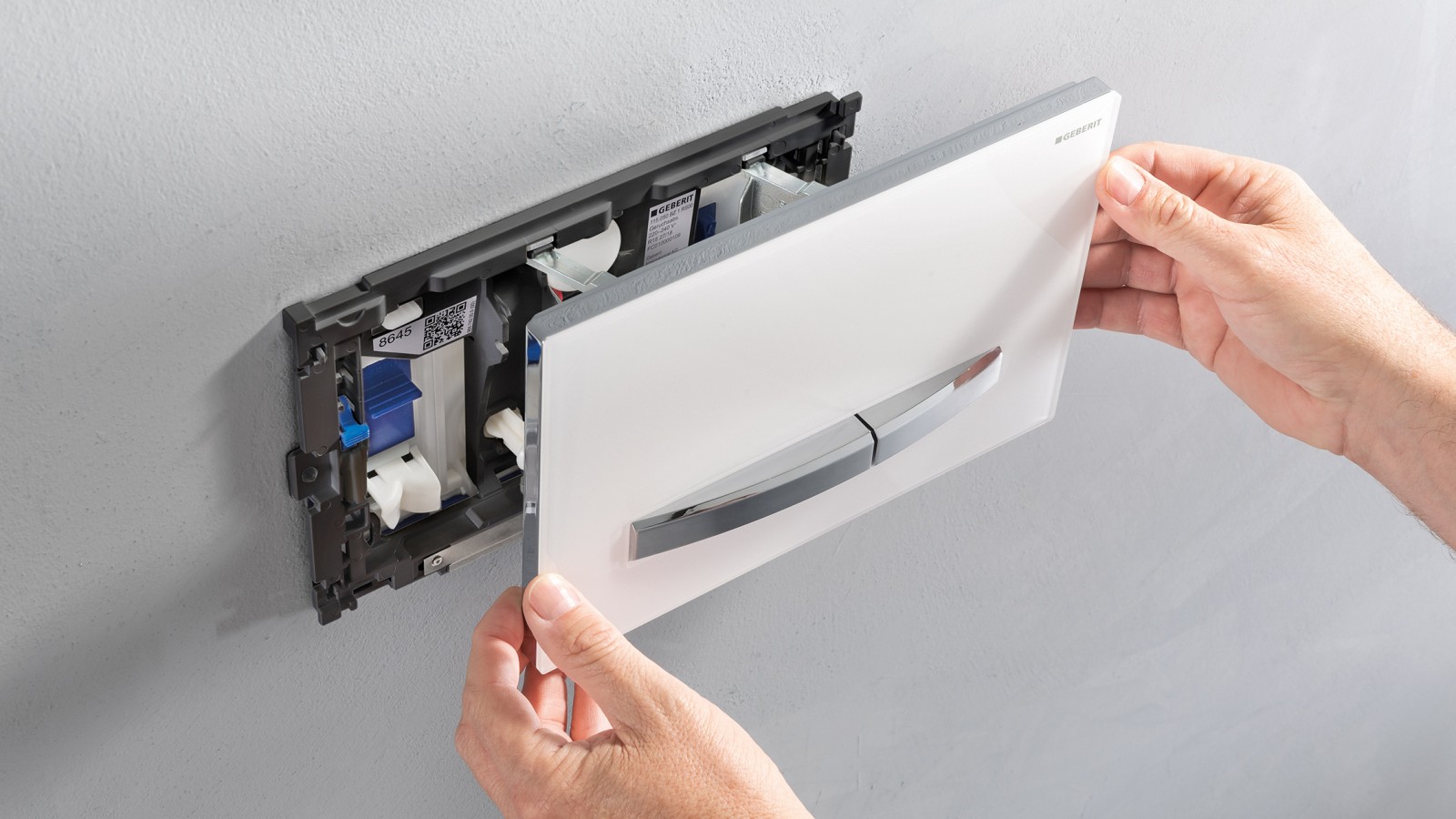

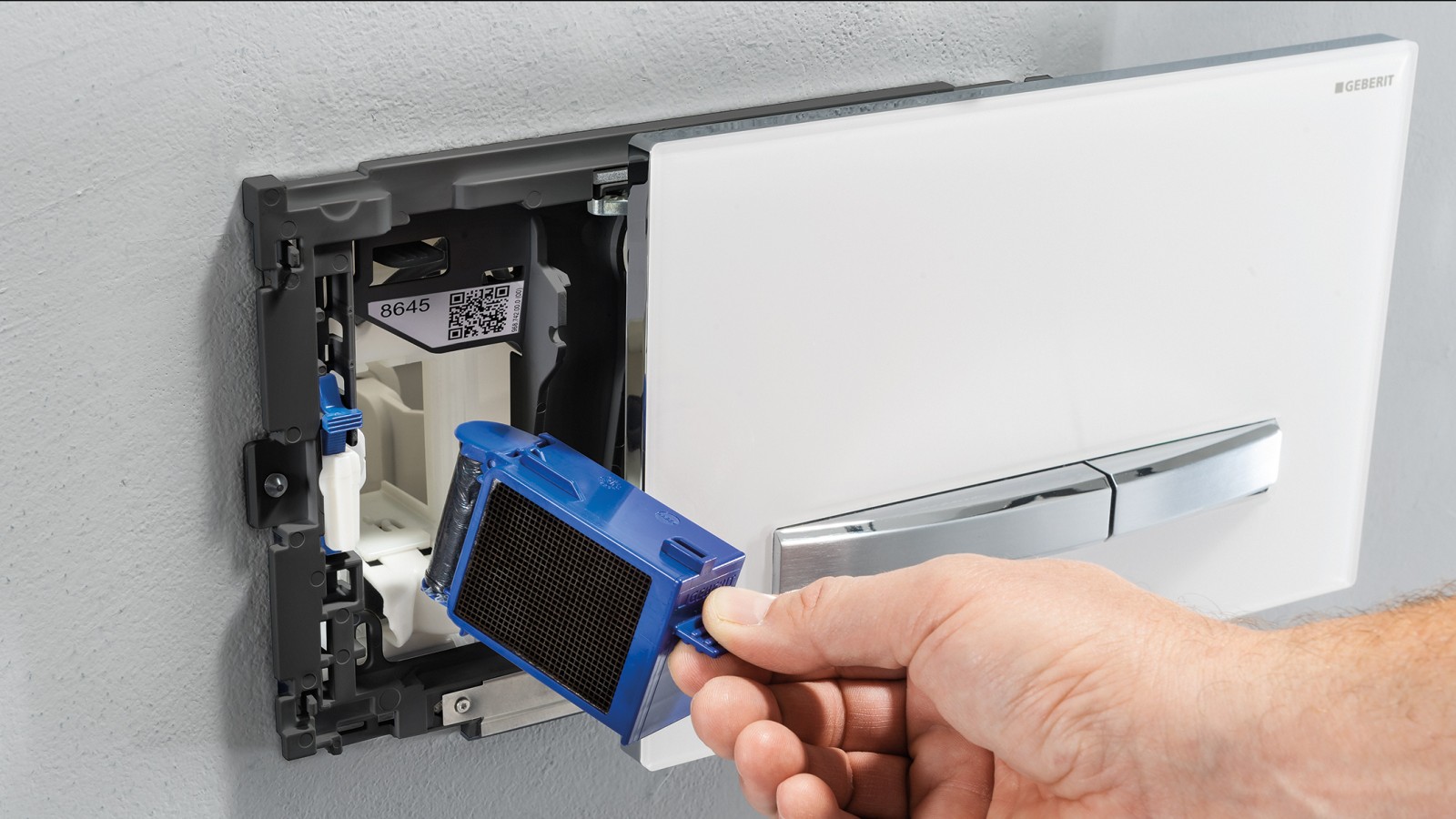

• Thanks to a special mechanism, the actuator plate can be opened with a flick of the wrist, giving easy access for replacing consumables.
• The insert for in-cistern blocks is located in an easily accessible position behind the actuator plate.

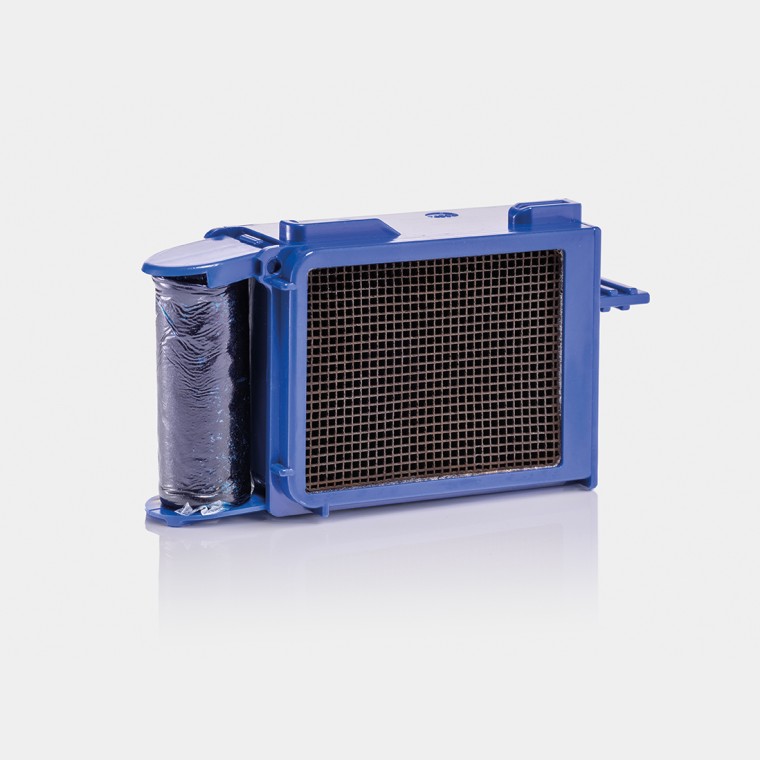

• The ceramic honeycomb filter is also easy to access and can be replaced by the end user.
• The intensity of the orientation light and the length of time it remains on can be personalised by the end user via app.

Both the ceramic honeycomb filter and the in-cistern blocks can be ordered via the Geberit WebShop or from your plumber at any time.
